Monteverde Carbon XC Race Frame

Toray T1000 carbon, 120 mm front/rear travel, full-sized dropper-post routing—built to outpace any trail bike on the climbs and carve like a downhill monster in the corners.

Features

  • Material & Layup
    Toray T1000 unidirectional carbon with race-grade resin for the ideal stiffness-to-weight ratio.

  • Suspension Travel
    120 mm front (506 mm axle-to-crown) and 120 mm rear—kinematics tuned to drive you forward, not wallow.

  • Dropper-Ready
    Straight seat tube (410–540 mm) clears the longest droppers so you can dial your saddle height on the fly.

  • Tire Clearance
    Room for up to 2.4″ rubber for grip when the trail gets loose.

Specifications

  • Frame Material: Toray T1000 monocoque carbon

  • Fork Travel: 120 mm, 45 mm offset

  • Rear Travel: 120 mm

  • Seat-post Diameter: 31.6 mm

  • Brake Mounts: Post-mount 180 mm compatible

  • Weight: Sub 1 900 g (medium)

Descending Performance
Bites into berms with six-inch confidence and snaps back under power—out-cornering full-blown trail bikes while still pedaling out of every turn.

Why “Monteverde”?

Named for Costa Rica’s legendary Monteverde Cloud Forest—home to some of the world’s most technical, flow-based XC tracks. Ride it, and you’ll understand why.

Monteverde Carbon XC Race Frame

Toray T1000 carbon, 120 mm front/rear travel, full-sized dropper-post routing—built to outpace any trail bike on the climbs and carve like a downhill monster in the corners.

Features

  • Material & Layup
    Toray T1000 unidirectional carbon with race-grade resin for the ideal stiffness-to-weight ratio.

  • Suspension Travel
    120 mm front (506 mm axle-to-crown) and 120 mm rear—kinematics tuned to drive you forward, not wallow.

  • Dropper-Ready
    Straight seat tube (410–540 mm) clears the longest droppers so you can dial your saddle height on the fly.

  • Tire Clearance
    Room for up to 2.4″ rubber for grip when the trail gets loose.

Specifications

  • Frame Material: Toray T1000 monocoque carbon

  • Fork Travel: 120 mm, 45 mm offset

  • Rear Travel: 120 mm

  • Seat-post Diameter: 31.6 mm

  • Brake Mounts: Post-mount 180 mm compatible

  • Weight: Sub 1 900 g (medium)

Descending Performance
Bites into berms with six-inch confidence and snaps back under power—out-cornering full-blown trail bikes while still pedaling out of every turn.

Why “Monteverde”?

Named for Costa Rica’s legendary Monteverde Cloud Forest—home to some of the world’s most technical, flow-based XC tracks. Ride it, and you’ll understand why.

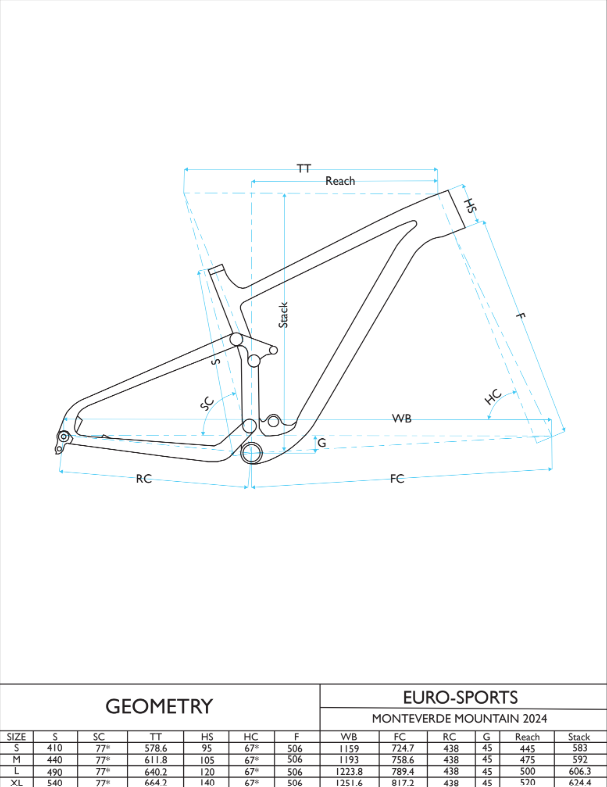

FRAME DESIGN:

  • provides a perfect blend of stability and agility: slack enough to keep the front wheel planted through rock gardens and steep chutes, yet not so lazy that you lose precision at speed.

  • positions you directly over the bottom bracket for an efficient power stroke whether you’re hammering up punchy pitches or sprinting out of a corner.

  • short enough for snappy corner exits and quick direction changes, while still offering enough wheelbase to keep the rear wheel tracking straight under hard acceleration.

  • tuned per size to balance high-speed composure with playful responsiveness; smaller sizes feel flickable through tech rock slabs, larger sizes instill confidence on open fast trails.

  • modern reach numbers yield a stable, planted cockpit, yet the stack allows a seated position that’s upright enough for sight-lines in rough terrain, or low enough when you need to pin it downhill.

  • gives a low center of gravity for cornering grip without sacrificing pedal clearance on root-laden climbs or rocky traverses.
